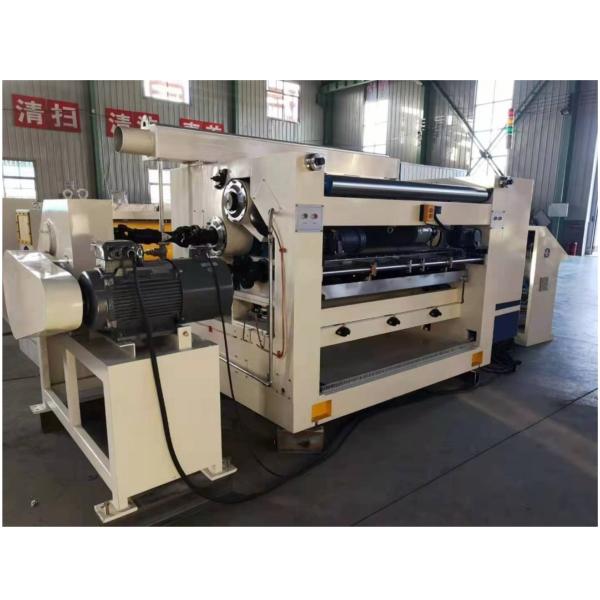

Corrugated Cardboard Production Line Single Facer Machine for High Speed Production

Name: Corrugated Cardboard Production Line Single Facer Machine for High Speed Production
Brand: LIHENG
Price: 18 USD

Quality Corrugated Cardboard Production Line Single Facer Machine for High Speed Production wholesale

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition : New

Automatic Grade : Automatic

Usage : Paper Forming Machine

Place of Origin : Hebei, China

Brand Name : LIHENG

Voltage : 380V 50Hz

Dimension(L*W*H) : 3500*1700*2200mm

Weight : 6500 KG

Warranty : 2 years

Key Selling Points : High-accuracy

Product name : High Quality Single Facer Board Machine

Driven Type : Electric-Pneumatic

Application : Corrugated Cardboard Production

Effective width : 1600mm

Design speed : 150m/min

Range of temperature : 160-180℃

Air source : 0.4-0.9Mpa

Steam pressure : 0.8-1.3Mpa

Packaging Details : Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.

Port : tianjin

Supply Ability : 15 Set/Sets per Month

Price : $18,000.00/sets >=1 sets

MOQ : 1pc

Contact Now

Product Description

The product is made to order, we will quote according to the model you want

Corrugated Cardboard Production Line Single Facer Machine for High Speed Production

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* Upper and lower corrugated roller are unit assemblage ,the whole corrugated rollers group can be move and quick replacement to change flute type quickly.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Glue section are unit assemblage ,whole section can be moved by track ,save maintenance time ,glue part can be running
independently r non-independently while stopped .
* Frequency conversion motor as main drive ,independent gear box connect with three gimbal axis , inverter to make stepless speed regulation for save power and keep one communication connector for production management .
*Press roller: Dia.364mm. with drum.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system

Use and Characteristics:

1. Max. machine speed : 150m/min
2. Economic speed : 120m/min
3. Max. working width : 1800mm
4. Max working steam pressure : 0.4-0.9Mpa
5. Steam temperature : 160—210 centigrade
6. Power requirements :380V, 50Hz
7. Diameter of corrugated roller : 320mm
8. Diameter of Press roller : 364mm.
9. Diameter of preheater roller : 320mm
10. Diameter of Glue roller : 242mm
11. Diameter of doctor roller : 135mm
12. Design speed : 150m/min.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Recommend Products

Company Profile

Cangzhou Liheng carton packaging Machinery Manufacturing Co., LTD.

located in Dongguang County economic Development Zone East. North of Beijing and Tianjin, south of Shandong, and Cangzhou iron Lion, Wuqiao acrobatic world adjacent; Beijing-shanghai Railway, 104 National Road, Beijing-Fu high-speed adjacent through, its convenient transportation, production environment is very superior.

Our company specializes in the production of various types of printing presses and a complete set of packaging machinery and equipment, with independent development and research capabilities, to achieve the high-tech level of sustainable development of equipment, and constantly improve the shortcomings of international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, safe automation machinery and equipment direction. Enterprise talent, strong technical force, with high-tech design personnel, precision production equipment, advanced testing means, strict quality management system and a strong technical production team, to ensure product quality and performance laid a solid foundation

Certifications

Exhibition

FAQ

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west
station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways
you want.
